ASPP Solar TukTuk

  • TukTuk Motor 7 kW rated power
    Top speed 60 km/h
    Range up to 120 km
  • Solar TukTuk project Motor 7 kW rated power
    Top speed 60 km/h
    Range up to 140 km
  • Solar TukTuk project Motor 7 kW rated power
    Top speed 60 km/h
    Range up to 120 km
  • TukTuk - Bangkok University The first place among the championships of universities in Thailand
    Best motor and controller for TukTuk
  • Truck TukTuk project Thailand with ASPP 7 kW motor rated power
    Max. speed 60 km/h
    Range up to 120 km/h
  • Truck-TukTuk project Thailand with ASPP 7 kW motor rated power
    Max. speed 60 km/h
    Range up to 120 km/h
  • TukTuk project Thailand with ASPP 7 kW motor rated power
    Max. speed 60 km/h
    Range up to 120 km/h
  • TukTuk project Thailand with ASPP 7 kW motor rated power
    Max. speed 60 km/h
    Range up to 120 km/h

ASPP Solar Cars

  • Solar Car Join project with Hanergy Glory
  • Solar Car - Mini Jeep Join project with Hanergy Glory
  • Solar Car - Mini Jeep Join project with Hanergy Glory
  • Solar Car
  • Solar Car - Mini Jeep
  • Solar Car - Mini Jeep

ASPP Electric Cars

  • IMG 20191102 115949
  • Motor Test
  • E- Car P6-Plus
  • p6-plus
  • E- Car P6-Plus in production
  • E- Car P6-Plus
  • Apple Mini With motor DA90S with 3 kW rated power
  • Production line ASPP P6Plus cars
  • Apple-Mini
  • Apple-mini
  • IMG 20191102 115949
  • Motor Test
  • E- Car P6-Plus
  • p6-plus
  • E- Car P6-Plus in production
  • E- Car P6-Plus
  • Apple Mini
  • Production line ASPP P6Plus cars
  • Apple-Mini
  • Apple-mini
 Technical Datasheet of Electric Truck

Electric Vehicle Brand & Model

Lujo Mini Truck

Carrying Number

2 people



Enquiry now

Item

Type

Parameter

Vehicle parameters

Body size: L*W*H (mm)

3700*1320*1680

Wheel Base (mm)

2700

Front wheelbase (mm)

1100

Rear wheelbase (mm)

1140

Ground clearance (mm)

180

Number of doors

2

Number of seats

2

Weight (kg)

720

Maximum Load Mass (kg)

800

performance index

Maximum speed (Km/h)

60

Maximum driving distance

120KM (Empty Load)

Charging mode

Slow charge

Charging time (h)

8-10

Maximum climbing angle

</=30%

Drive

Driving mode

FWD

Power battery

Battery type

Maintenance free battery

Rated voltage

12V

Number of Batteries

6

Rated capacity

100AH

Nominal quantity of electricity

7.2KWH

Drive motor

Type of motor

AC motor

Motor model

APPP DA100SL (DA112S)

Rated power

7KW (12kW)

Peak torque

120Nm (205Nm)

Motor controller

Input voltage

72V

Transmission case

Gearbox type

Automatic

Shift mode

push rod

Block number

3(D/N/R)

Chassis

Front suspension type

Integrated front axle + Damping   Spring

Rear suspension type

Bow leaf spring + Lifting Lug

Front brake type

Disc brake

Rear brake type

Drum brake

Parking brake type

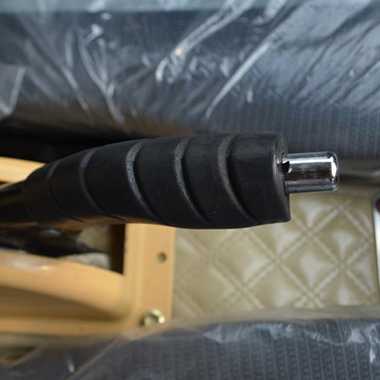

Hand brake

Tire specification

145/70 R12

Hub material

 Aluminium   alloy

Safety equipment

Vehicle central control lock

YES

Remote key

YES

Hill Start Assist

YES

Rear View Camera

YES

Reverse Sensor

YES

Charging to prevent leakage

YES

Charging automatic power failure

YES

Brake power break

YES

Vehicle body stability control

Combination Braking   System

Failure beep alarm

YES

Vacuum Hydraulic Brake Assistance

YES

Direction assistance

YES

Automatic locking

YES

Child safety lock

YES



Other configuration

4   *electric lifting doors and windows

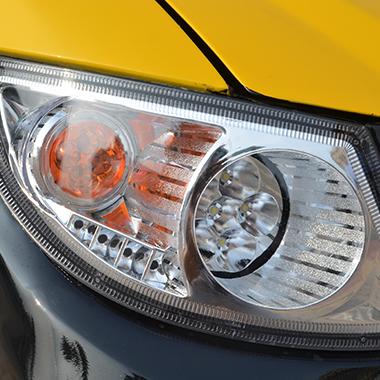

Combined   headlamp

FM   radio

Combined   rear taillight

Fog   lamp / Cornering lamp / Far and near light / Hazard warning flash lamp

Front   seat belt

Defrosting   of warm air

Multi   stage windscreen wiper

Adjustable   external rearview mirror

Automobile   radial vacuum tire

Top   reading lamp

Sun   visor

Integral   flip rear seat

Knitted   seat

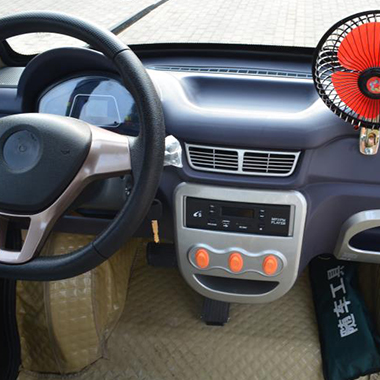

Composite   dashboard

Light   and wiper combination switch

Color   Touch LCD Screen

Music/Video/Picture   player

Bluetooth   hands-free call

Multilingual   handoff

USB/SD   interface
